SuXin Product | SX-6101-6PS Online Dust Particle Counter Knowledge Classroom

Publication Date:2025-08-13 Author: Sothis Environmental
Online laser air particle counter uses optical principles to count dust particles of different sizes per unit volume of air. Light reflects different energy levels on dust particles of different sizes, which are then converted into electrical signals of varying strengths. These signals are amplified and converted into digital signals that are read by the MCU. The common flow units of 2.83L/min, 28.3L/min, 50L/min, and 100L/min are based on the volume of air flowing through the sensor per minute.
At the same time, in order to meet the diverse requirements of customers, functions such as data storage, online monitoring, human-computer interaction, wireless connection, etc. have been integrated.


SX-6101-6PS Product Introduction



SX-6101-6PS is an online air dust particle counter with advantages such as low noise, stable counting, long lifespan, and user-friendly human-computer interaction interface. The standard 4-channel is 0.5um-1.0um-5.0um-10.0um, and customers can customize any particle size channel within 0.5um-25um, which can be expanded to 6-channel.


1. Low noise, driven by a DC brushless fan, with the advantages of low noise and long lifespan

2. Stable counting, using PWM closed-loop regulation design to control stable fan flow, thus ensuring stable counting

3. Support RS485 communication (Modbus RTU protocol), Ethernet communication (Modbus TCP), and optional LORA/WIFI for wireless management of real-time data. Interconnected with the upper computer, use the SuXin app monitoring and management software for convenient operation and real-time monitoring.

4. The instrument itself comes with a 4.3-inch touch screen, which can be operated with gloves, making it easier to operate and set and query monitoring data in real time.



Product advantages





SOTHIS' similar products have significant leading advantages in the industry, mainly reflected in the following points:


Smaller volume and lighter weight

More comprehensive and rich functions

Excellent performance, reliable and stable

Customizable services to meet different customer needs

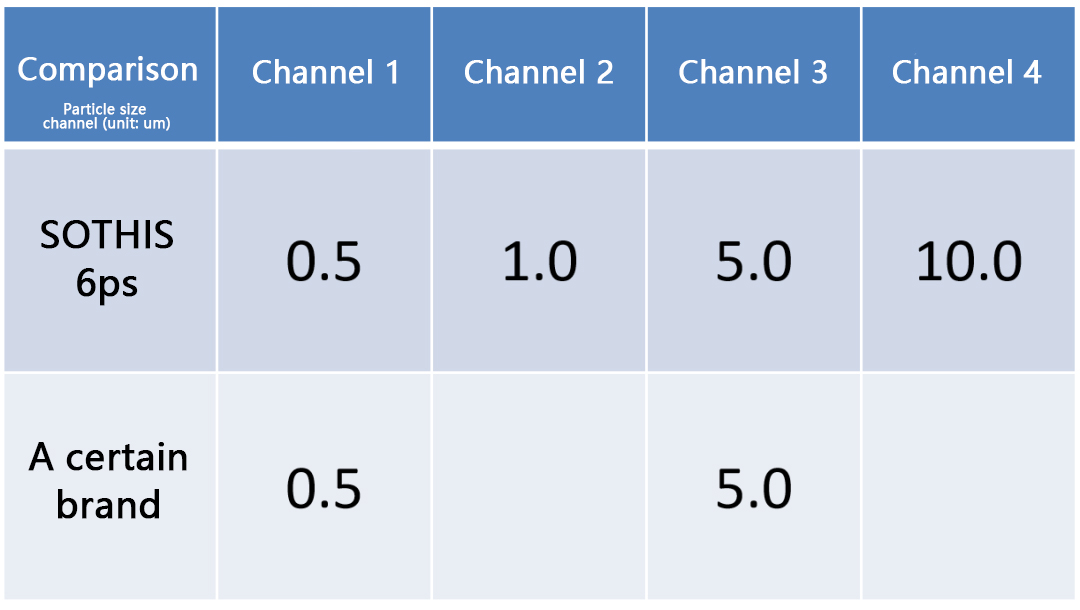

SOTHIS SX-6101-6ps standard channel supports four channels and can provide customized services

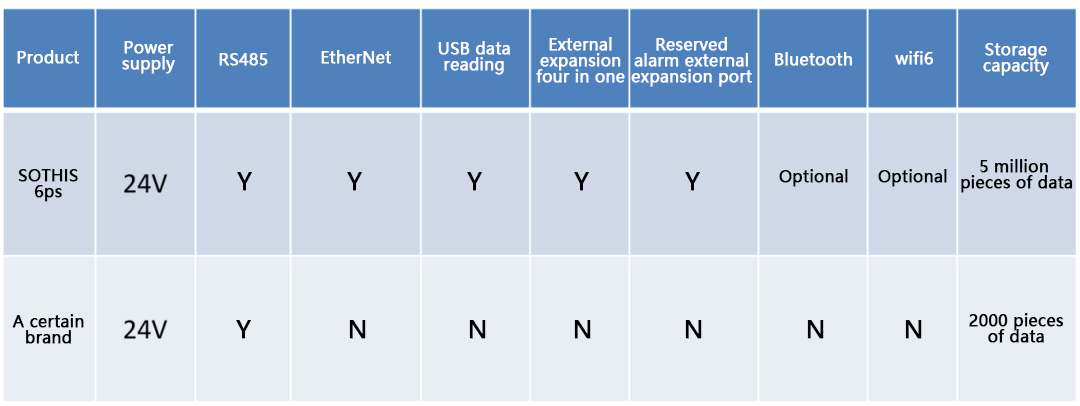

Compared with the same type:




SOTHIS SX-6101-6ps has richer and more comprehensive functions



Excellent performance:




We provide a dedicated 24V adapter, optional sampling head, optional temperature and humidity meter, etc.


Instructions

The matching 24V adapter is used to connect the device. After powering on normally, enter the login interface with the initial password 1234



On the parameter settings page, you can set sampling related parameter settings, such as sampling frequency, period, interval, unit, whether to cycle sampling, etc





Sampling interface, click on start sampling to perform gas sampling and counting for the current environment




Online RS485 communication can set corresponding baud rates to 9600, 19200, 38400



If there are other wireless modules available, click on the highlighted icon to access the corresponding settings link. Once configured, you can proceed with wireless control



Online 6P supports multi-level user management login
